Formation micro imager (FMI)
FMI stands for Fullbore Formation MicroImager (a trademark of Schlumberger). It is a high-resolution borehole imaging tool that provides a visual representation of the borehole wall based on micro-resistivity measurements.

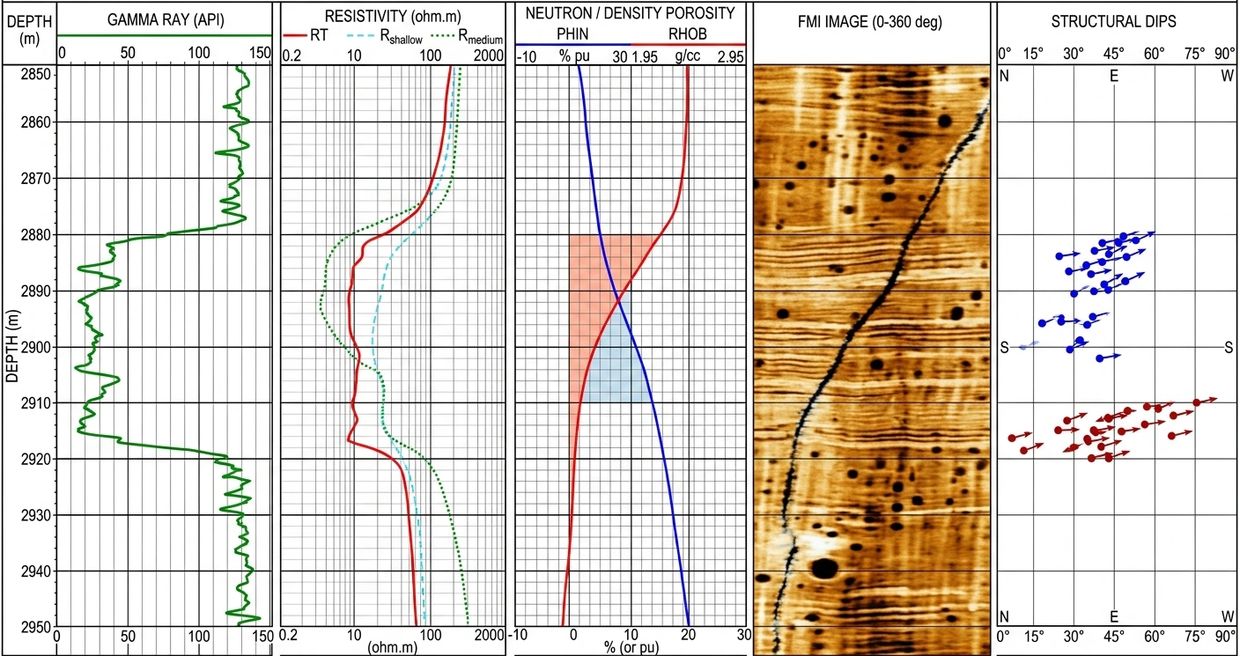

Think of an FMI log as a high-definition "electronic photograph" of the rocks underground. While standard logs (like Gamma Ray or Density) give a single value for a large volume of rock, FMI provides a detailed map of the surface of the wellbore.
How it Works (The Mechanism)
The FMI tool has 4 or 8 articulating arms. At the end of these arms are pads and flaps that are pressed against the borehole wall. Each pad contains numerous small electrodes (buttons). These buttons inject a tiny electrical current into the formation. By measuring the ease with which this current flows, the tool detects very small changes in the rock's resistivity. Because different minerals, fluids, and structures (like fractures) conduct electricity differently, these measurements are converted into a color-coded image.
Visual Interpretation (Color Scale)
The image is presented on a color scale ranging from dark to bright:
Bright Colors (Yellow/White):Represent High Resistivity. These are usually dense, tight rocks (like tight limestone or well-cemented sandstone) or rocks filled with non-conductive fluids (like oil/gas).
Dark Colors (Brown/Black): Represent Low Resistivity (High Conductivity). These indicate porous zones, clay/shale, or features filled with conductive water-based mud, such as open fractures.
Key Applications
FMI is one of the most powerful tools for a petrophysicist because it fills the gap between "standard logs" and "physical core samples".
Fracture Characterization: This is the most famous use. FMI can identify natural fractures, determine their orientation (Dip and Strike), and help distinguish if they are Open (dark lines) or Healed/Mineral-filled (bright lines).
Sedimentology: It allows geologists to see "Cross-bedding," "Laminations," and "Vugs" (small holes in carbonates). This helps in determining the depositional environment (e.g., ancient river beds or reefs).
Thin-Bed Analysis: Standard logs have a vertical resolution of about 2 feet, meaning they "average" the data. FMI has a resolution of about 0.2 inches. It can detect very thin sand layers in shale that would otherwise be missed, which is critical for calculating "Net Pay."
Geomechanics & Stress: By looking for "Borehole Breakouts" (where the hole has caved in) or "Tensile Fractures," engineers can determine the direction of the earth's stresses. This is vital for planning horizontal drilling and hydraulic fracturing.
Important Requirements
Conductive Mud: FMI requires Water-Based Mud (WBM) to work because electricity must flow from the pads into the rock. (For Oil-Based Mud, different tools like the OBMI are used).
Pad Contact: The tool needs a relatively smooth borehole. If the hole is too "washed out" (too large), the pads cannot touch the walls, and the image becomes blurry or lost.
