cement bond log/ variable density log
CBL and VDL are two important acoustic logs used in petroleum engineering to evaluate cement quality behind casing.
CBL — Cement Bond Log
CBL measures the amplitude and travel time of acoustic waves traveling through the casing. It helps determine how well the cement is bonded to the casing.
In general: High wave attenuation = better cement bond
Low attenuation = poor bond or free pipe
VDL — Variable Density Log
VDL is a waveform display of the acoustic signal. It provides a visual interpretation of the cement bond quality by showing the wave patterns recorded by the tool. It is especially useful for identifying:
- good bond
- channeling
- microannulus
- free pipe
- formation arrivals
Main difference
CBL is more quantitative but VDL is more qualitative/visual

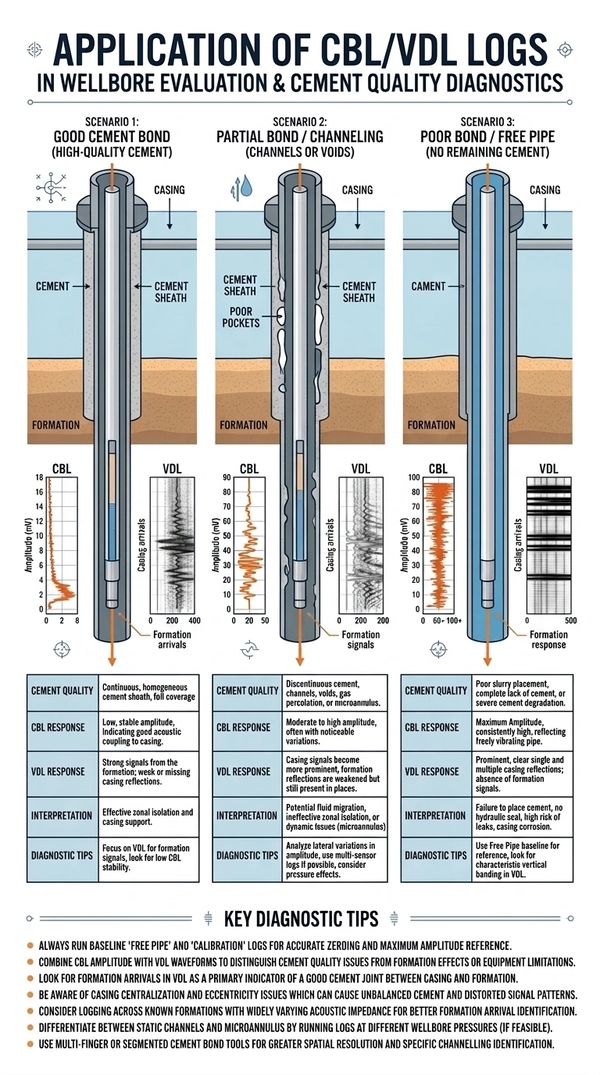

Applications
CBL and VDL logs are used to:
- evaluate primary cementing quality
- check zonal isolation
- detect poor cement bond, channels, and microannulus
- decide whether remedial cementing is needed.
- assess well integrity before perforation, production, or workover
- help determine if a zone is properly isolated for production or abandonment

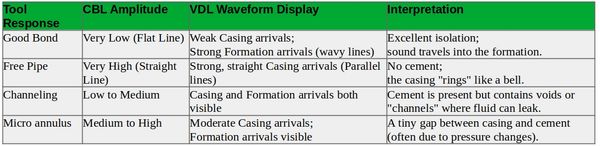

Interpretation Guide for CBL/VDL Curves.
To interpret these logs, you typically look at the CBL Amplitude curve (measured in millivolts - mV) and the VDL Map (a grayscale or color-coded display of waveforms) simultaneously.
To interpret these logs, you typically look at the CBL Amplitude curve (measured in millivolts - mV) and the VDL Map (a grayscale or color-coded display of waveforms) simultaneously.

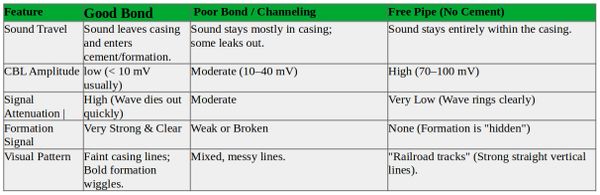

Comparison Table
Good Bond vs. Poor Bond vs. Free Pipe
This table summarizes the physical behavior of the sound waves in different scenarios:
Key Diagnostic Tips for Engineers:
- The "Bell" Analogy:
If you hit a bell and it rings clearly, it is "free" (Free Pipe). If you wrap your hand around the bell and hit it, the sound is muffled (Good Bond).
- Microannulus vs. Channeling:
If you are unsure if it's a microannulus or a permanent channel, engineers often rerun the log under pressure. If the bond improves under pressure, it was a microannulus (the casing expanded to close the gap). If it stays the same, it is a channel.
