sonic logs

The Sonic Log (also known as the Acoustic Log) is a fundamental wireline logging tool that measures the travel time of sound waves through the rock formations adjacent to the borehole. While Resistivity logs tell us about fluid saturation, Sonic logs tell us primarily about the mechanical and geological properties of the rock.


Basic Principle: Interval Transit Time (Δt)

The Sonic tool consists of at least one acoustic transmitter and two or more receivers.

- The Process: The transmitter emits a sound pulse. This pulse travels through the formation and is detected by the receivers.

-Measurement (Δt): The primary output is the Interval Transit Time (measured in microseconds per foot, μs/ft). It represents the time it takes for a sound wave to travel one foot through the formation. Compressional wave speed (primary, P-wave) – fastest wave. Some tools also record shear wave (S-wave) and Stoneley wave (for fractures/permeability).

- Physics: Sound travels faster through solid, dense rock and slower through porous, fluid-filled rock or gas.

Interpretation Challenges (Pitfalls)

- Compaction (The "Compaction Correction"): In young, uncompacted formations (often found in deep-water basins), the rock is not fully consolidated. The sound travels slower than the matrix theory suggests. Without a "Compaction Correction Factor (B_p)," the sonic log will vastly overestimate porosity.
- Cycle Skipping: If the formation is too attenuated (e.g., in gas zones or highly fractured zones), the signal is weak, and the tool may "skip" the first arrival, leading to noisy or erroneous transit time spikes.
- Vugs and Fractures: Standard sonic tools measure the fastest path. If there are large vugs (holes) or secondary porosity, the sound wave will bypass them, meaning the sonic log might "see" only the solid matrix and ignore the vuggy porosity.

Primary Applications

 A- Porosity Calculation (Wyllie Time-Average Equation): Because sound travels faster in the rock matrix and slower in the pore space (fluids), the sonic log is extensively used to estimate porosity (phi):

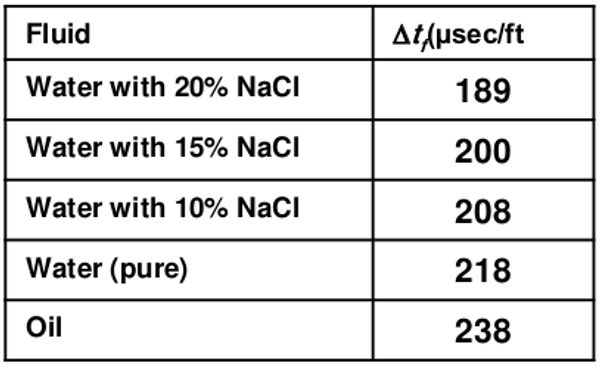

phi = (Δt_log - Δt_matrix)/(Δt_fluid -Δt_matrix)

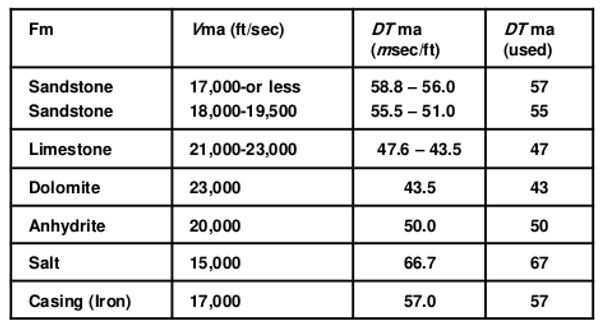

Note: Δt_matrix is specific to the rock type (e.g., 43.5 for limestone, 55.5 for sandstone).

B- Seismic Correlation (Tying Wells to Seismic): This is perhaps its most vital application. By integrating the sonic log (calculating the total time vs. depth), geophysicists convert seismic data (which is in "time domain") into depth.  It essentially acts as the bridge between Well Data and Surface Seismic Data. Synthetic Seismograms: Sonic logs (often combined with Density logs) are used to create "Synthetic Seismograms" to check if the well trajectory matches the seismic image of the underground layers.

C- The "Sonic vs. Density" Comparison In petrophysics, you will often plot the Sonic Log against the Density Log. If the two curves do not "overlay" correctly, it often indicates the presence of secondary porosity or lithology changes that need further investigation. Cross-plotting sonic vs. density or neutron porosity helps distinguish sandstones, limestones, dolomites, and shales.

D- Overpressure Detection: Abnormal increase in Δt (slower velocity) in shales indicates undercompaction or potential high pore pressure.

Integration with Other Logs & Data

Advanced Applications

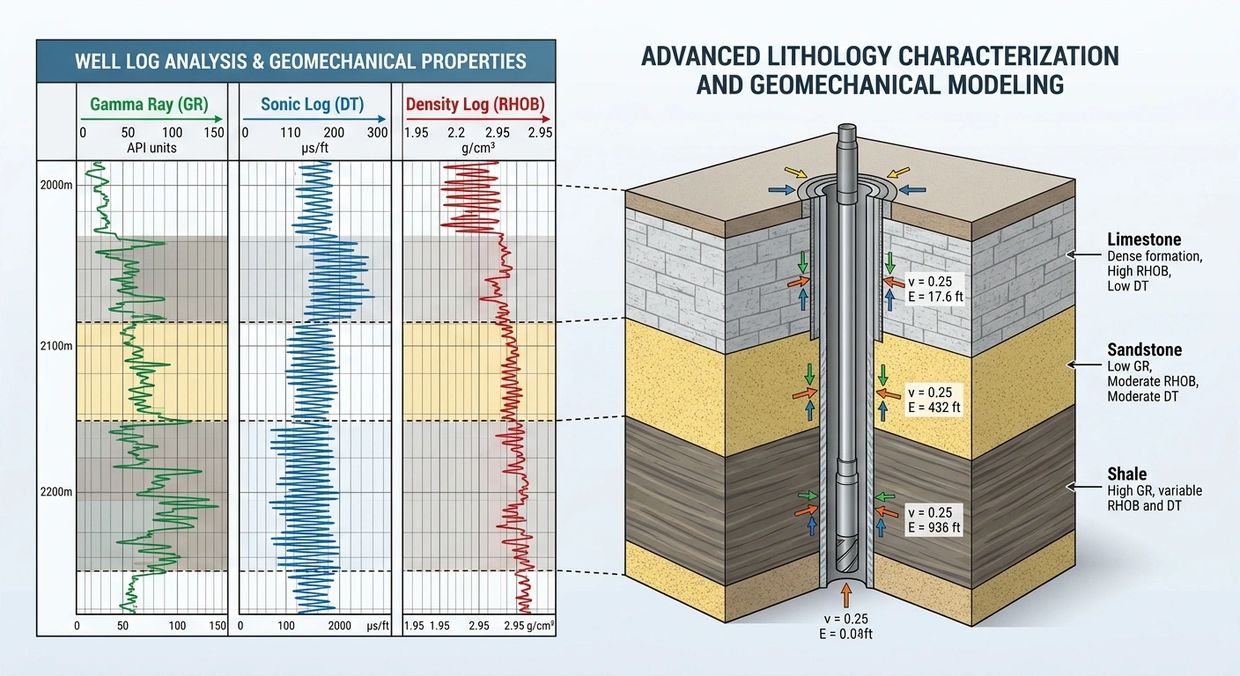

- Geomechanics & Fracture Pressure: By measuring longitudinal (P-waves) and shear (S-waves) arrival times, we can determine the Elastic Moduli of the rock (Young’s Modulus, Poisson’s Ratio, Shear Modulus).

This is crucial for:
*Drilling Optimization: Designing safe mud weights to prevent borehole collapse.
*Hydraulic Fracturing (Fracing): Predicting how easy or hard it is to create or propagate fractures in a reservoir.
- Gas Detection: Gas has a drastic effect on sonic velocity. It slows down P- waves significantly. A "cycle skip" on a sonic log is a classic indicator of gas, as the gas attenuates the sound wave so much that the receiver misses the first arrival and triggers on a later, slower wave cycle.
- Shear Wave Anisotropy (Cross-Dipole Sonic): Modern tools use dipole transmitters to generate shear waves. This allows engineers to measure Stress-Induced Anisotropy basically identifying the direction of the principal horizontal stresses in the earth, which is vital for planning horizontal well trajectories.

Stoneley Wave Analysis for Permeability & Fractures

Stoneley (tube) wave energy attenuation and slowness dispersion are sensitive to formation mobility:

  •  Stoneley attenuation coefficient → pore fluid mobility (k/μ), where k = permeability, μ = viscosity.
  • Stoneley slowness vs. frequency → detects fractures intersecting the borehole (characteristic V-shaped dispersion pattern).

Workflow:

  1. Model Stoneley waveform in an elastic borehole (no flow).
  2. Compare with measured Stoneley (attenuated due to fluid flow into formation).
  3. Invert for mobile permeability (range ~0.1–1000 mD) – complementary to NMR.

Limitations: Requires good borehole diameter; washouts cause false attenuation.
