Resistivity

In petroleum engineering, a Resistivity Well Log is a fundamental tool used to characterize subsurface formations. It measures the ability of rocks and their contained fluids to resist the flow of an electric current.

Here is a comprehensive breakdown of the key concepts:

Primary Objective: Fluid Identification

The most critical use of resistivity logging is to distinguish between formation water and hydrocarbons:

- Hydrocarbons (Oil & Gas): These are electrical insulators. If

a porous rock contains oil or gas, it will show high resistivity.

- Formation Water: Usually saline (salty), water acts as a

conductor. Therefore, water-bearing zones show

low resistivity.

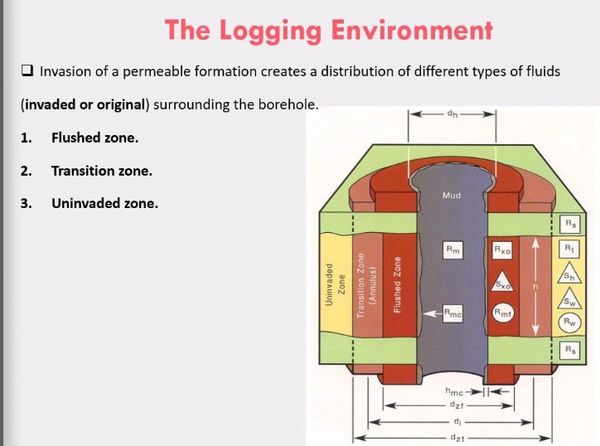

Diagram showing different fluid zones around a borehole in logging environment.

Depth of Investigation (Invasion Profile)

During drilling, the drilling mud tends to seep into the porous formations (a process called invasion). To get an accurate reading, tools measure resistivity at different depths from the borehole wall:

- Rxo (Flushed Zone): The area closest to the borehole, completely filled with mud filtrate.

- Ri (Transition Zone): The middle area where mud filtrate and original fluids are mixed.

- Rt (True Resistivity): The deep, undisturbed part of the formation. This is the most important value for calculating the actual hydrocarbon content.

Types of Logging Tools

- Induction Logs: These use electromagnetic coils to induce currents in the formation. They work best in non-conductive muds (like oil-based muds) or air-filled holes.

- Laterologs (Electrode Logs): These send a focused current directly into the rock. They are superior in conductive muds (like salt-water based muds) and highly resistive formations.

The Archie Equation

Resistivity is the key variable in the Archie Equation, which is used to calculate Water Saturation (Sw). Once you know the percentage of water, you can determine the percentage of oil/gas (Shc = 1 -Sw).

The basic form is:

(Sw)^n=(a.Rw)/(Rt.(Phi)^m))

- Rt: True formation resistivity (from the log).

- phi: Porosity (usually from Density or Neutron logs).

- Rw: Resistivity of the formation water.

- a, m, n: Constants related to the rock geometry and cementation.

Common Challenges in Interpretation

- Lithology Effects: Dense, non-porous rocks like tight limestone or anhydrite show very high resistivity simply because there is no fluid path for electricity, not because they contain oil.

- Shaly Sands: Clay minerals (shale) are naturally conductive. If a sandstone contains a lot of clay, the resistivity will be low even if oil is present, which can lead to "missing" a productive zone.

- Salinity: If the formation water is fresh (not salty), it will have high resistivity, potentially mimicking the signature of oil.

In summary, resistivity logs are the "eyes" of the petrophysicist for finding oil, but they must always be compared with porosity logs* (like Density or Sonic) to provide a reliable evaluation of a reservoir.

advance Resistivity tools

Resistivity Anisotropy (Rv vs. Rh)

Traditional tools measure horizontal resistivity (Rh), but many reservoirs (especially thin-bedded turbidites or shaly sands) are anisotropic. This means the resistivity measured perpendicular to the bedding plane (Vertical Resistivity, Rv) is much higher than the resistivity measured parallel to it (Rh).
- The Problem: If you only use Rh in thin beds, you will significantly overestimate water saturation (Sw) and potentially skip a productive "low-resistivity pay" zone.
- The Solution: 3D Induction Tools (like Baker Hughes' Explorer or Schlumberger's RT Scanner). These tools use multi-component transmitters and receivers (X, Y, and Z axes) to calculate both Rv and Rh and determine the dip angle of the formation.

Dielectric Dispersion Logging

Standard resistivity logs fail when the salinity of formation water is unknown or highly variable (e.g., in "Freshwater" reservoirs or EOR water-floods).
- The Science: At very high frequencies (MHz to GHz), the measurement becomes sensitive to the Dielectric Constant of the materials.
- The Advantage: Water has a very high dielectric constant (~80), while oil and rock matrix are very low (~2-5). Because this measurement is independent of water salinity (Rw), it allows for accurate Sw calculations in reservoirs where the Archie equation fails because Rw is unknown.

LWD (Logging While Drilling) & Propagation Logs

In LWD, we use Propagation Resistivity rather than induction. It measures the phase shift and attenuation of high-frequency electromagnetic waves.
- Geosteering: Advanced LWD tools use "Deep Directional Resistivity." They can "see" a bed boundary (like a cap rock or a water contact) up to 100 feet away from the drill bit.
- Real-time Decision: This allows the driller to adjust the well path in real-time to stay within the "sweet spot" of the reservoir (the most resistive zone).

Invasion Modeling and Tornado Charts

Advanced petrophysicists don't just take the "Deep Resistivity" (Rt) at face value. They use Invasion Modeling.
- If the mud filtrate (Rmf) is very different from the formation water (Rw), the invasion profile creates a "step" or "transition" zone.
- Tornado Charts: These are mathematical plots used to correct the measured resistivity for the effects of invasion. By inputting ratios of Deep/Medium/Shallow readings, you can back-calculate the "true" Rt even when the invasion is deep, as well as estimate the diameter of the invaded zone (di).
